Single Layer Forming Fabrics

Single Layer Forming Fabrics

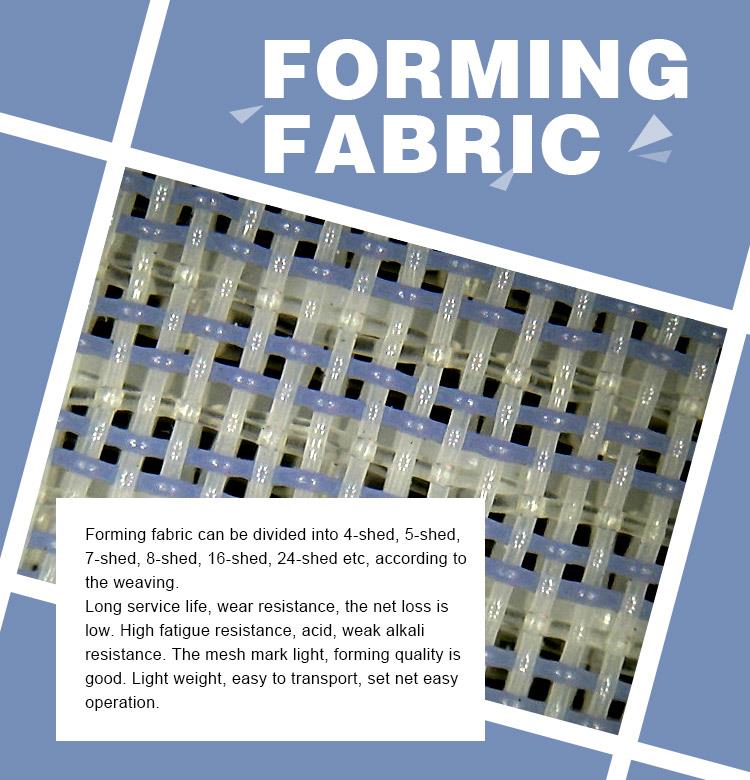

Polyester Forming fabrics. Paper making polyester forming fabrics can be divided into 4-shed, 5-shed, 8-shed, 16-shed, 24-shed according to the weaving type. Single layer, double layer, two-and a half layer fabric and triple-layer fabric are the three common Items. Main Equipment:

Polyester Forming fabrics.

Paper making polyester forming fabrics can be divided into 4-shed, 5-shed, 8-shed, 16-shed, 24-shed according to the weaving type. Single layer, double layer, two-and a half layer fabric and triple-layer fabric are the three common Items.





Weaving Series&Types Model of Fabrics  Wire Diameter(mm)Density(wire/cm) Air Permeability (m3/m2h)
 Warp WeftWarp Weft

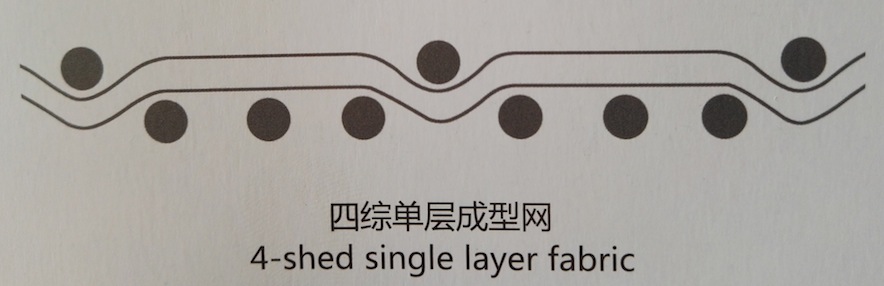

4-shed single layer fabric272540.200.2529227500±500
272740.200.273022.57600±500
312040.200.2235286500±500
5-shed single layer fabric272550.200.2530237600±500
272850.220.2830237800±500
312050.200.2135326700±500

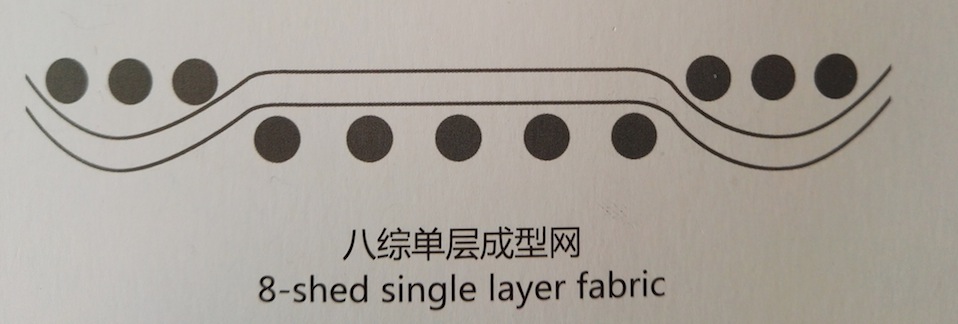

8-shed single layer fabric253580.220.352819.59000±500
254080.220.4029.5198500±500
273580.220.3529208500±500
274080.220.4031.5198000±500

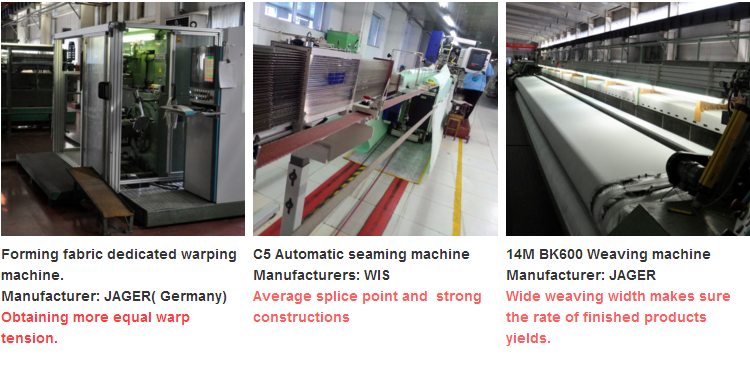

Main Equipment:




If you are interested in our single layer forming fabrics, welcome to buy or wholesale the quality products with our factory. As one of the leading manufacturers and suppliers in China, we must be your best choice.
