Woven Dryer Fabrics
woven dryer fabrics can be divided into one and half mesh, double layer mesh and flat dryer mesh according to varieties. Made from high grade flat monofilament and round monofilament polyester yarns....
Features

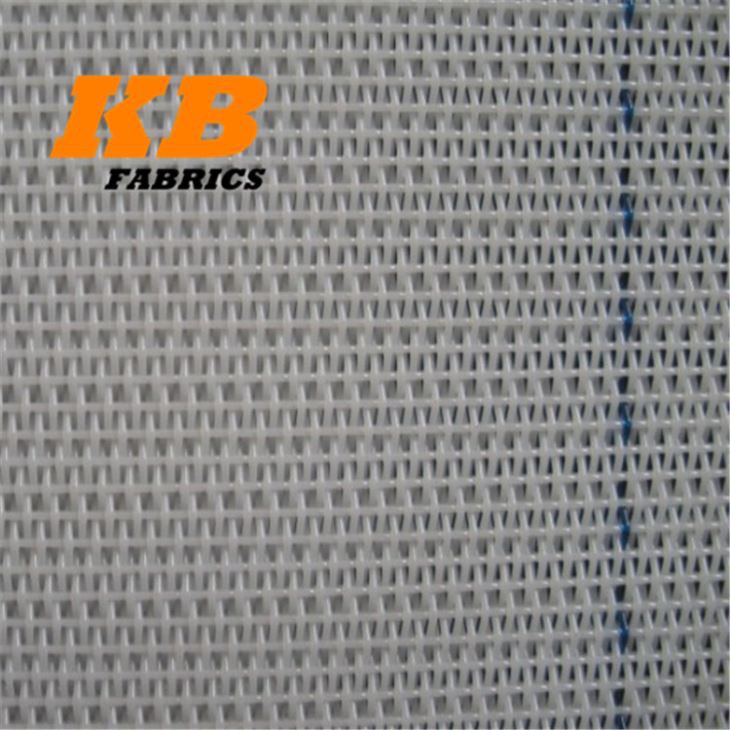

Woven Dryer Fabrics
Material: Polyester monofilament round yarns(PET %)
Uses：
Dryer Fabric with Round Yarn is suitable for making paperboard, Kraft paper, tissue paper, ticket paper etc. It also can be used in coal mine, food and medicine industry as the conveyor belt of the equipment
Features:
1) Shrink-resistant, heat resistance under 180 degrees
2) Stable property, high strength, long work time
3) Standard with first-class monofilament
4) Waterproof, High density and good air permeability
5) Easy installation and use
Connecting types:

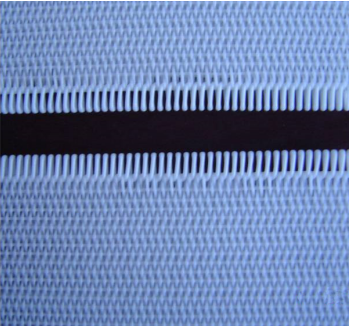

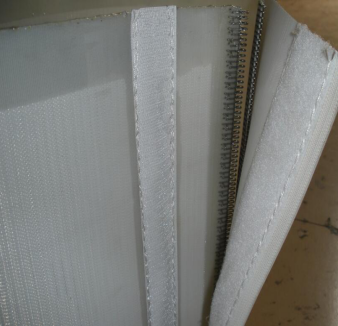

Endless seam, Pin seam, Spiral seam and double seam.
Technical Specification:
| Weaving Series and Types |
Model of Fabric |
Thread Diameter mm |
Density (pieces/cm) |
Strength (N/cm) |
Weight kg/m2 |
Thick-ness mm |
Air |
||||
|
Warp |
Weft |
Warp |
Weft |
Mesh Surf-ace |
Inser-ting Place |
Spiral Conne-cting |
|||||
|
Round Thread Screen |
24503 |
0.50 |
0.50 |
24.6 |
12 |
2000 |
1400 |
900 |
1.06 |
1.60 |
7000 |
|
24504 |
0.50 |
0.50 |
25 |
11.2 |
2000 |
1400 |
900 |
1.10 |
2.06 |
11000 |
|
|
22504-A |
0.5 |
0.5 |
24.8 |
13.2 |
2300 |
1400 |
900 |
1.26 |
1.80 |
6500 |
|
Our Services
1. Quality guaranteed.
2. Competitive price.
3. Fast delivery time.
4. Good after sales service.
5. If anything you need help, we will reply you within 24hours.
6.Technical service with a technical service team

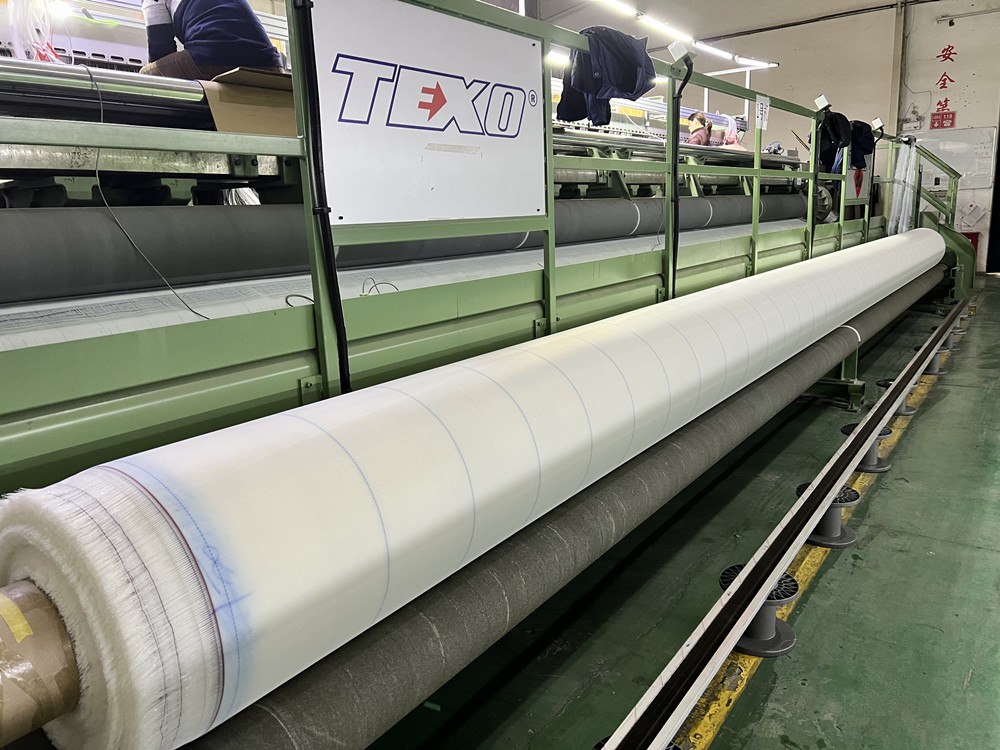

Woven Dryer Fabrics Producing Machine of TEXO brand
Packing: Plastic Bag and Wooden Case
Shipping: we can ship to russia, also we have the successful way to get Russia bank payment
