Polyester Forming Fabrics

Polyester Forming Fabrics : Material Feature : Heat Resistant Color : White, blue, red Material : PET polyester Type : 100% synthetic Weave : 4-, 5-, 7-, 8- and 16-shed Single layer, double layer, double and a half layer and triple layer Seam : Endless without any mark With heat-cut and sealed...

Send Inquiry

Features

Polyester Forming Fabrics: SSB polyester forming fabrics is the high quality triple layers forming fabrics for crescent paper machine

Material Feature : Heat Resistant
Color : White, blue,
Material : PET polyester
Type : 100% synthetic
Weave : 4-, 5-, 7-, 8- and 16-shed Single layer, double layer, double and a half layer and triple layer
Seam : Endless without any mark With heat-cut and sealed edges
Packaging Details : Waterproof appear inside,wooden case outside and also can be packed according to your requirement
Delivery Detail : Shipped in 7-15 days after payment

According to the weaving, polyester forming fabric can be divided into 3-shed, 4-shed. According to the category, it can be divided into one and a half layer, double layer and rectangular wire fabric. According to the joining mode, it can be divided into insert, pin, pin ring and spiral ring join.
3-shed one layer and a half are suitable for drying papers below 70g.
4-shed double layer fabric is suitable for drying papers above 70g.
flat wire dryer fabric is suitable for the fore several heating box of the drying zone, quality papers can use all.

Weaving Series&Types	Model of Fabrics	Wire Diameter(mm)		Density(wire/cm)		Air Permeability (m3/m2h)
Weaving Series&Types	Model of Fabrics	Warp	Weft	Warp	Weft	Air Permeability (m3/m2h)
4-shed single layer fabric	27254	0.20	0.25	29	22	7500±500
	27274	0.20	0.27	30	22.5	7600±500
	31204	0.20	0.22	35	28	6500±500
5-shed single layer fabric	27255	0.20	0.25	30	23	7600±500
	27285	0.22	0.28	30	23	7800±500
	31205	0.20	0.21	35	32	6700±500
8-shed single layer fabric	25358	0.22	0.35	28	19.5	9000±500
	25408	0.22	0.40	29.5	19	8500±500
	27358	0.22	0.35	29	20	8500±500
	27408	0.22	0.40	31.5	19	8000±500
8-shed double layer fabric	56188	0.17	0.19/0.22	61.3	51.2	6800±500
	60188	0.18	0.18/0.20	66	49	6000±500
	62188	0.15	0.16/0.17	70.5	50.5	5700±500
16-shed two and a half layer fabric	365016	0.28	0.20,0.27/0.50,0.50	37-38	31-32	8500±500
	424516	0.25	0.20,0.25/0.45,0.45	48-49	42-43	8000±500
	562516	0.18	0.13,0.18/0.25,0.25	57-58	46-47	6500±500
	563516	0.20	0.13,0.25/0.35,0.35	56-57	61-62	7000±500
	602516	0.18	0.13,0.20/0.25,0.25	62-63	55-56	6200±500
	603516	0.20	0.13,0.25/0.35,0.35	61-62	52-53	6300±500
20-shed triple layer fabric	563520	0.15,0.20	0.15,0.15/0.35,0.35	70	55	5000±500
24-shed triple layer fabric	364024	0.20/0.20	0.20,0.17/0.40,0.40	42	52	6500±500

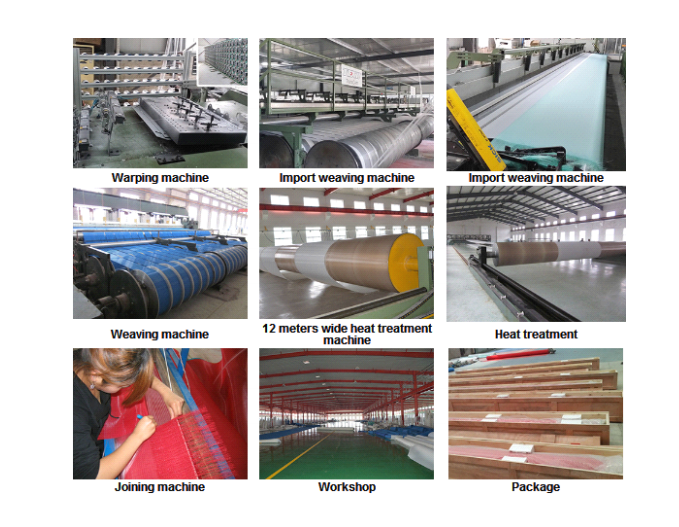

Papar Machine Polyester Forming Fabrics Equipment:

paper machine forming fabric equipment_副本.png

FAQ:

Q: How to make an inquiry of polyester forming fabric?

A: You need to provide speed of paper making machine, kind of paper, weight of paper and the quantity to ask an offer, you can also indicate if you have any special requirement. We'll provide a formal quotation list after your inquiry received.

Q: Could you provide free sample?

A: Yes, we can provide free sample together with our catalogue. But the courier charge will on your side. We'll send back the courier charge if you make an order.
