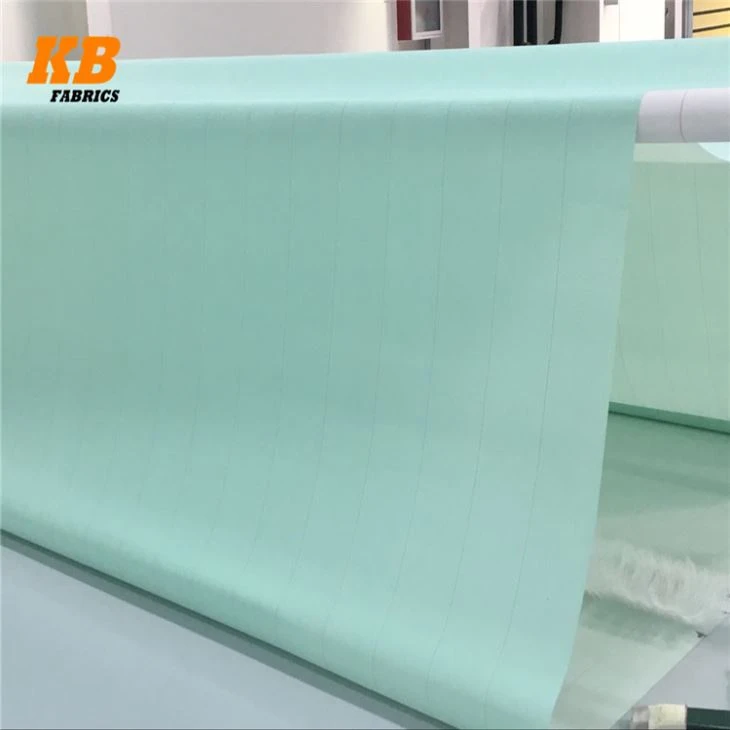

Forming Fabrics

If you are interested in our forming fabrics, welcome to buy or wholesale the quality products with our factory. As one of the leading manufacturers and suppliers in China, we must be your best choice.



According to the weaving, polyester dryer fabric can be divided into 3-shed, 4-shed. According to the category, it can be divided into one and a half layer, double layer and rectangular wire fabric. According to the joining mode, it can be divided into insert, pin, pin ring and spiral ring join.
3-shed one layer and a half are suitable for drying papers below 70g.
4-shed double layer fabric is suitable for drying papers above 70g.
flat wire dryer fabric is suitable for the fore several heating box of the drying zone, quality papers can use all.

Parameters of forming fabric:

Weaving Series&Types	Model of Fabrics	Wire Diameter(mm)		Density(wire/cm)		Air Permeability (m3/m2h)
		Warp	Weft	Warp	Weft
4-shed single layer fabric	27254	0.20	0.25	29	22	7500±500
	27274	0.20	0.27	30	22.5	7600±500
	31204	0.20	0.22	35	28	6500±500
5-shed single layer fabric	27255	0.20	0.25	30	23	7600±500
	27285	0.22	0.28	30	23	7800±500
	31205	0.20	0.21	35	32	6700±500
8-shed single layer fabric	25358	0.22	0.35	28	19.5	9000±500
	25408	0.22	0.40	29.5	19	8500±500
	27358	0.22	0.35	29	20	8500±500
	27408	0.22	0.40	31.5	19	8000±500
8-shed double layer fabric	56188	0.17	0.19/0.22	61.3	51.2	6800±500
	60188	0.18	0.18/0.20	66	49	6000±500
	62188	0.15	0.16/0.17	70.5	50.5	5700±500
